Toyota Sienna Body Repair

Jake von Slatt — Sat, 08/08/2009 - 19:10

If you follow me on Twitter you know that I had a near death encounter with a flying chunk of steel last week .

This is how I spent my Saturday.

. . .

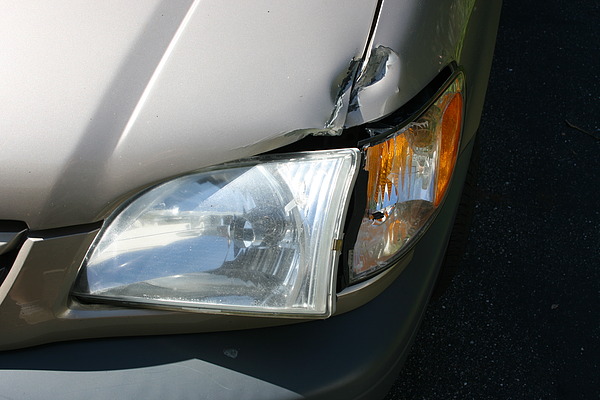

I was in the far left lane on Rt. 128 and a big rig in the far right-hand lane ran over a draw-bar hitch that had fallen off of some yahoo's pick'em up truck.  I spotted the draw-bar as it pin-wheeled across the highway but since I was in typical 128 rush-hour traffic (bumper to bumper at 75 MPH) I had zero options for avoidance and just had to man-up and take the hit.  Here you see the results:

Yeah, it could have hit any one of the hood, fender, turn signal, or headlight - but no, it had to impact at the intersection of all four.

I ordered a new headlight and turn signal assembly from RockAuto.com, my new favorite online auto parts place, total cost was about $90 including shipping and everything arrived in about 5 days.  My guess is the dealer would have been well over $300.

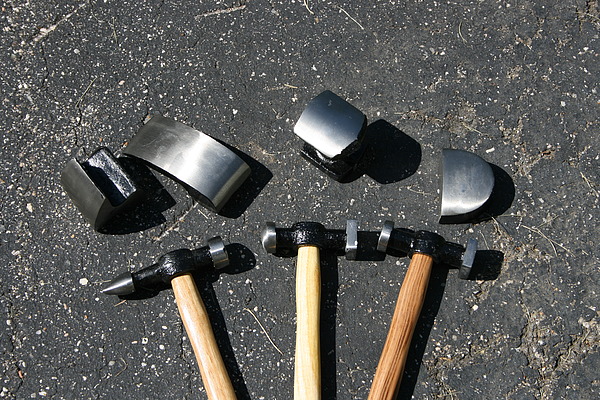

I also ordered an auto body hammer and dolly kit from that old standby, J.C. Whitney - 'bout $20.

I am a true believer in the Pareto Principle. Which states:

for many events, roughly 80% of the effects come from 20% of the causes.

and the von Slatt corollary which states:

If you define "good" as 80% of "perfect" you can get 5 times as much stuff done.

Step one, bang out the dents, ideally no part of the sheet metal should end up more than 1/4" from where it should be and edges should be in alignment.

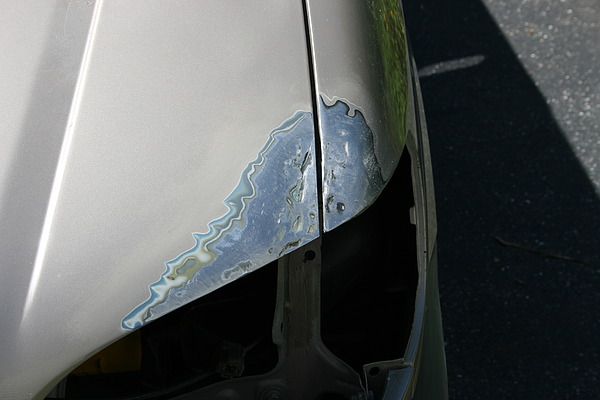

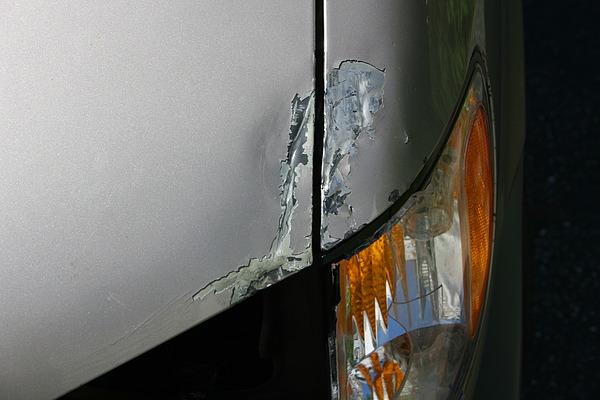

Next we grind and sand off all of the loose paint and feather the edges.

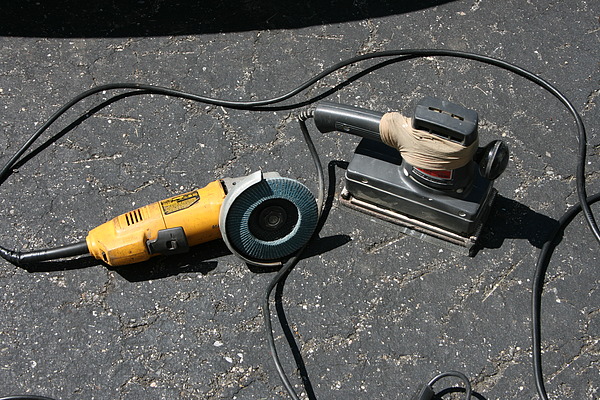

I used my trusty angle grinder and an orbital sander - the panty hose keeps dust out of the motor and extends the life of the sander.

Looks like there has been some previous work on this hood, there are a couple of layers of putty here.

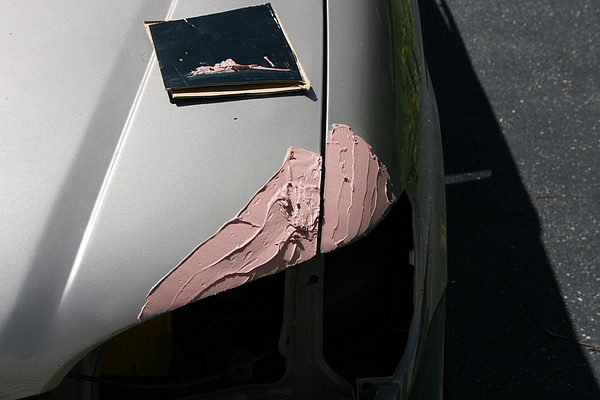

Ah! Bondo! I remember that smell!

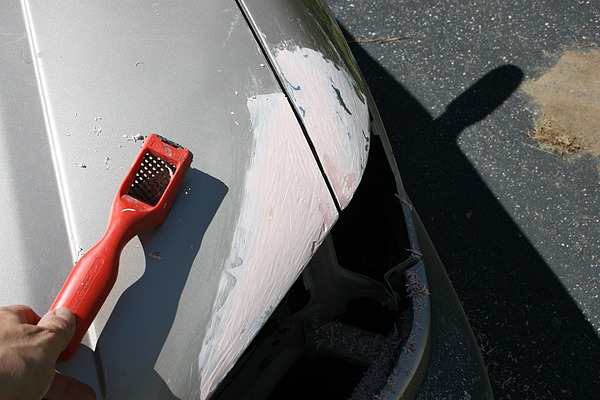

A "cheese grater" is used for rough shaping, I have a couple of divits so I will apply another coat of Bondo.

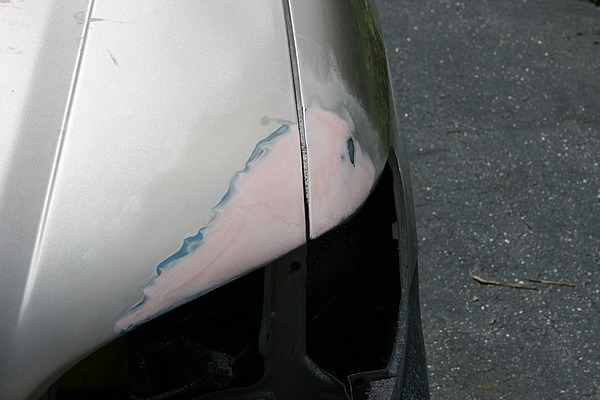

After the second coat and another round of the cheese grater I block sanded with 120 grit paper and then feathered further with some 400 grit.

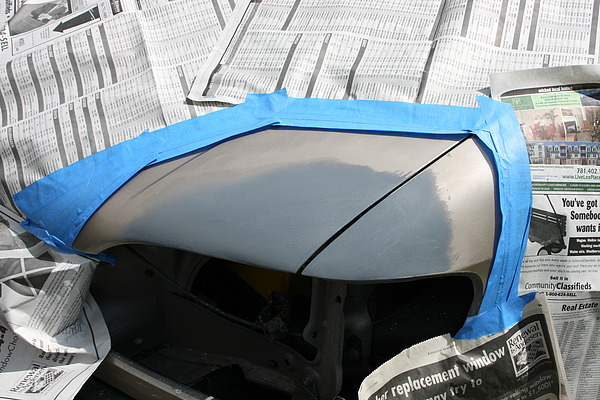

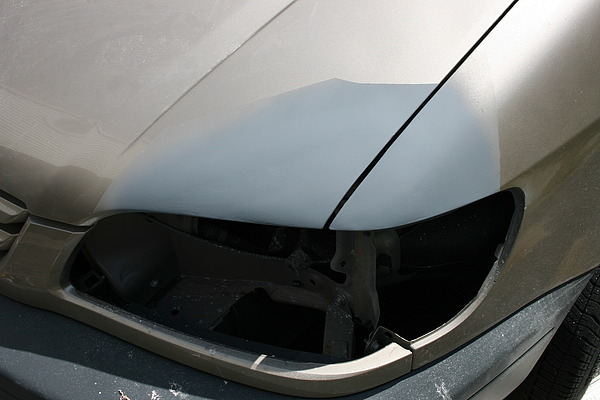

3 coats of sandable primer come next. These I wet sanded with 400 grit paper before masking the area for the color coat.

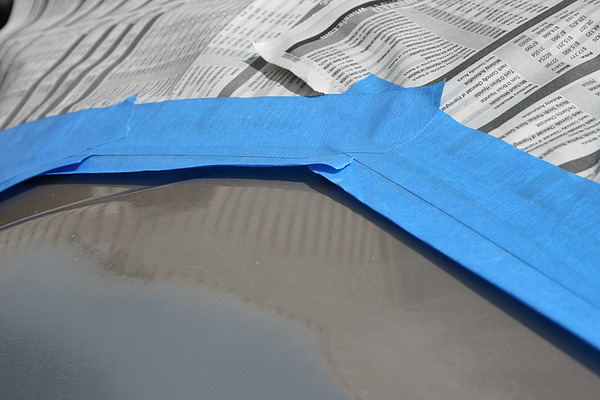

The guy at the auto parts store told me about this trick, you fold over half of the masking tape to mask some of the spray, it makes for a smooth transition when you buff out the newly painted area with rubbing compound.

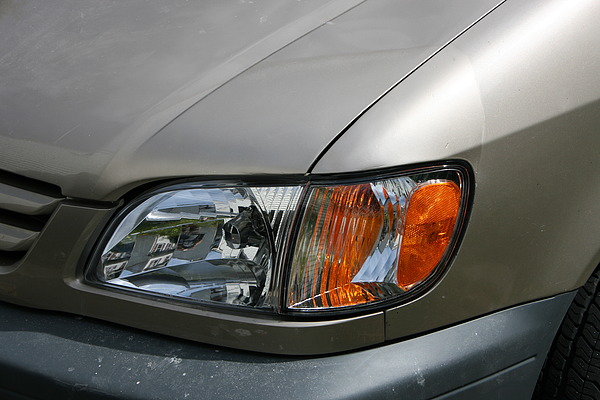

I'll let the color coat cure for a few weeks then I'll wet sand with 600 grit and lay down a coat of clear sealer.  Total cost of repair was about $100 including all parts, Bondo and paint.  Total time spent: about 5 hours.

/p>

Related Stories:

Toyota Sienna Evaporative Canister (P0446) and SVS Valve Repair or Think Like a Maker
Etsy Fashion Finds #1
Jake's Hollywood Adventure and Etching an iPod
Toyota Yaris Battery Light On - Repair
Swing-arm Kerosene Wall Lamp
Gentleman's Emporium
Angle Lamp Repair
  • Car
  • Jake von Slatt
  • Projects
  • Repairs
  • Login or register to post comments

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.

all hood must be painted..

IRONHIDE — Mon, 11/02/2009 - 08:24

all hood must be painted..

  • Login or register to post comments

Goodness!

Harlequin — Mon, 08/10/2009 - 12:19

I cannot believe how neat that is. Now be honest- did you touch up the line of the gap in photoshop to make it *that* straight?

Seriously, though. Good work!

  • Login or register to post comments

 Nope! The gap is true.  I

Jake von Slatt — Mon, 08/10/2009 - 12:38

 Nope! The gap is true.  I did find just the right angle to minimize the discontinuities in the surface finish though. ;-)

  • Login or register to post comments

holy autorepair batman!

zahal — Sat, 08/08/2009 - 22:01

When i was 16, i tried bondoing my 1994 tercel's bumper. By the time I had finished my bumper was solid, but i had not sanded nearly enough, leaving what looked like a tumor coming out of my bumper. Next Bondo project im going to make an investment in a good sander. That being said, fantastic job. I'm sure if you had taken it to the body shop they would have repainted the fender and the hood.

Well Done,

Yoni.

  • Login or register to post comments

Using the cheese grater while

Jake von Slatt — Sun, 08/09/2009 - 07:25

Using the cheese grater while the putty is stil soft is probably the biggest time saver. Shape with the grater, smooth with the sand paper.
